View Security Reports

Anti-DDoS Pro provides various security reports to help you understand the protection effect after connected to Anti-DDoS Pro.

Operation Steps

Method 1:

Log in to Anti-DDoS Pro Monitoring Report Page. By default, the relevant report for the first instance will be displayed. You can switch instances in the drop-down box of Instance Name, or select multiple or all instances. If multiple instances are selected, the data of the charts in the report will be displayed cumulatively.

Method 2:

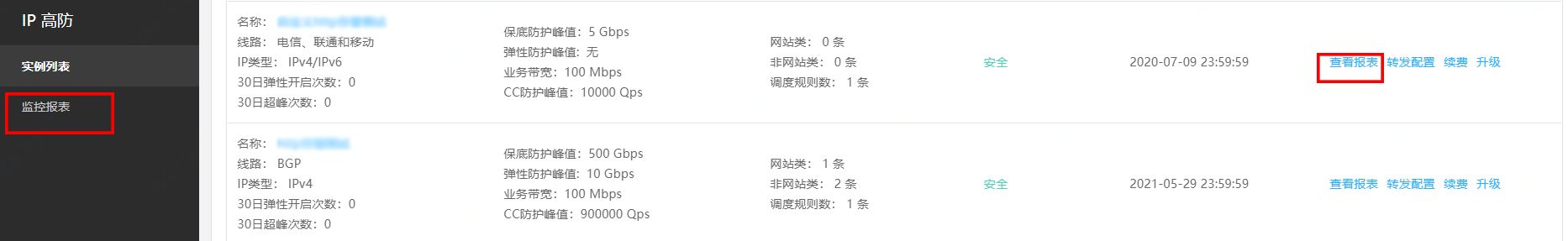

Log in to the Anti-DDoS Pro Console. Find the instance for which you want to view the report, and click View Report to view the report of the instance.

Report Type

The Anti-DDoS Pro reports are divided into four categories: DDoS attack protection, business traffic, CC protection, and connections. The report of the day can be displayed for 7 days or 30 days by default. The report within 30 days can be checked at most, and the minimum report granularity is 5min. Below the report is the display of the attack log.

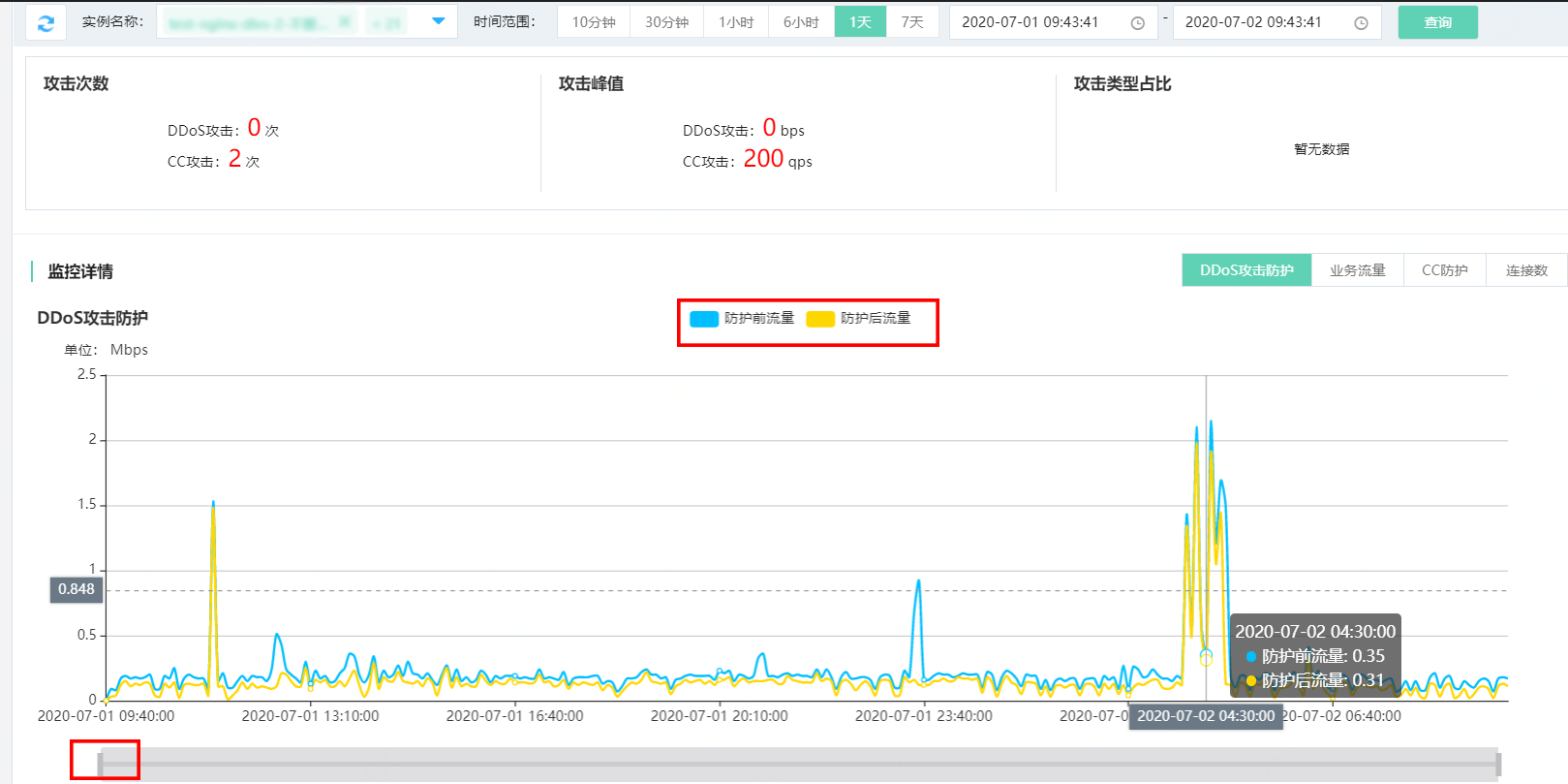

1. DDoS Attack Protection Report Including the comparison of the traffic before protection and the traffic after protection. Click the legend above the graph to hide the traffic curve before or after protection. Drag the time window scroll bar below the graph to narrow the time window query within the current query time range. Roll the mouse over the graph to display the traffic data of that line.

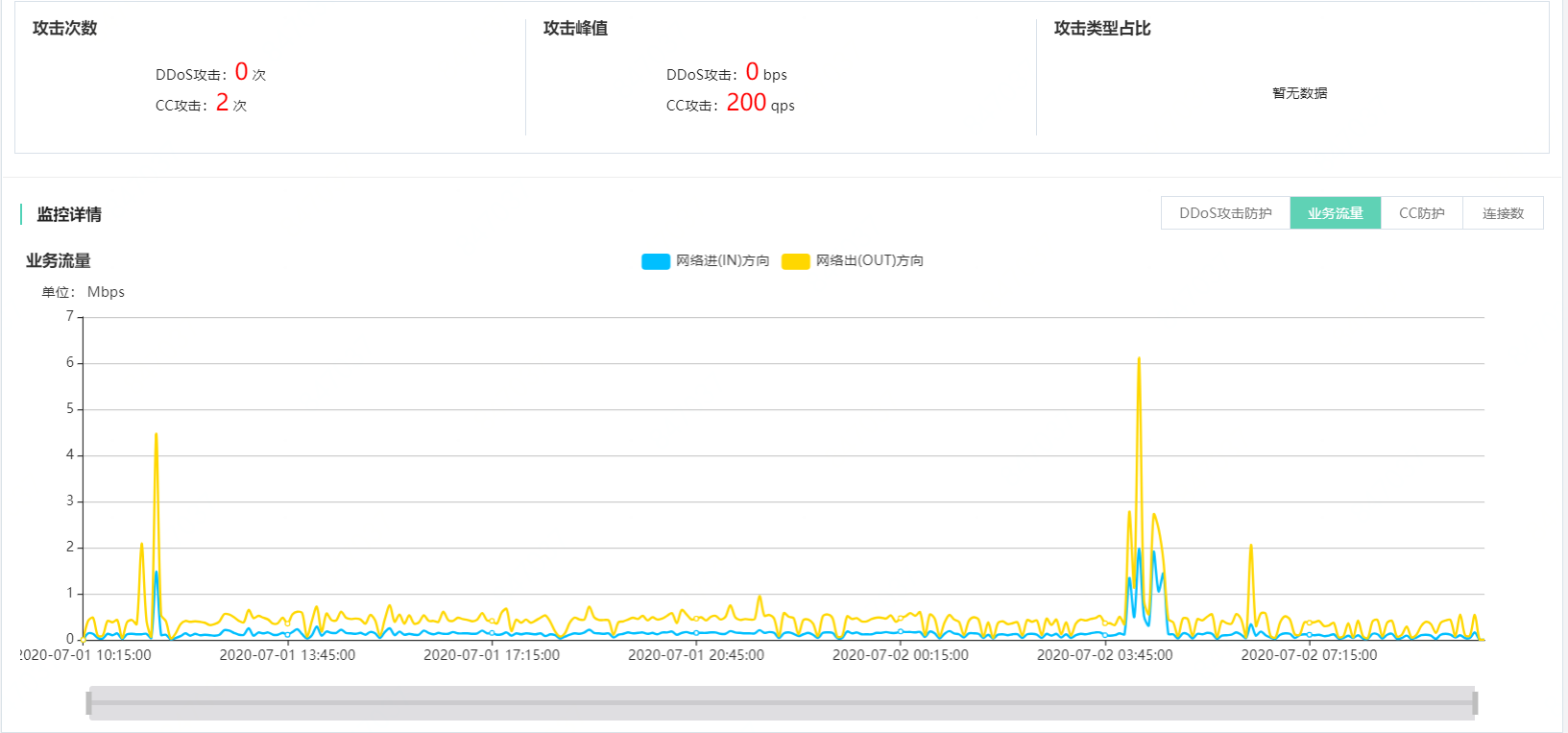

2. Business Traffic Report It includes traffic in both IN and OUT directions. IN traffic is the traffic that is forwarded to the origin server after cleaning, and OUT traffic is the response traffic from the origin server.

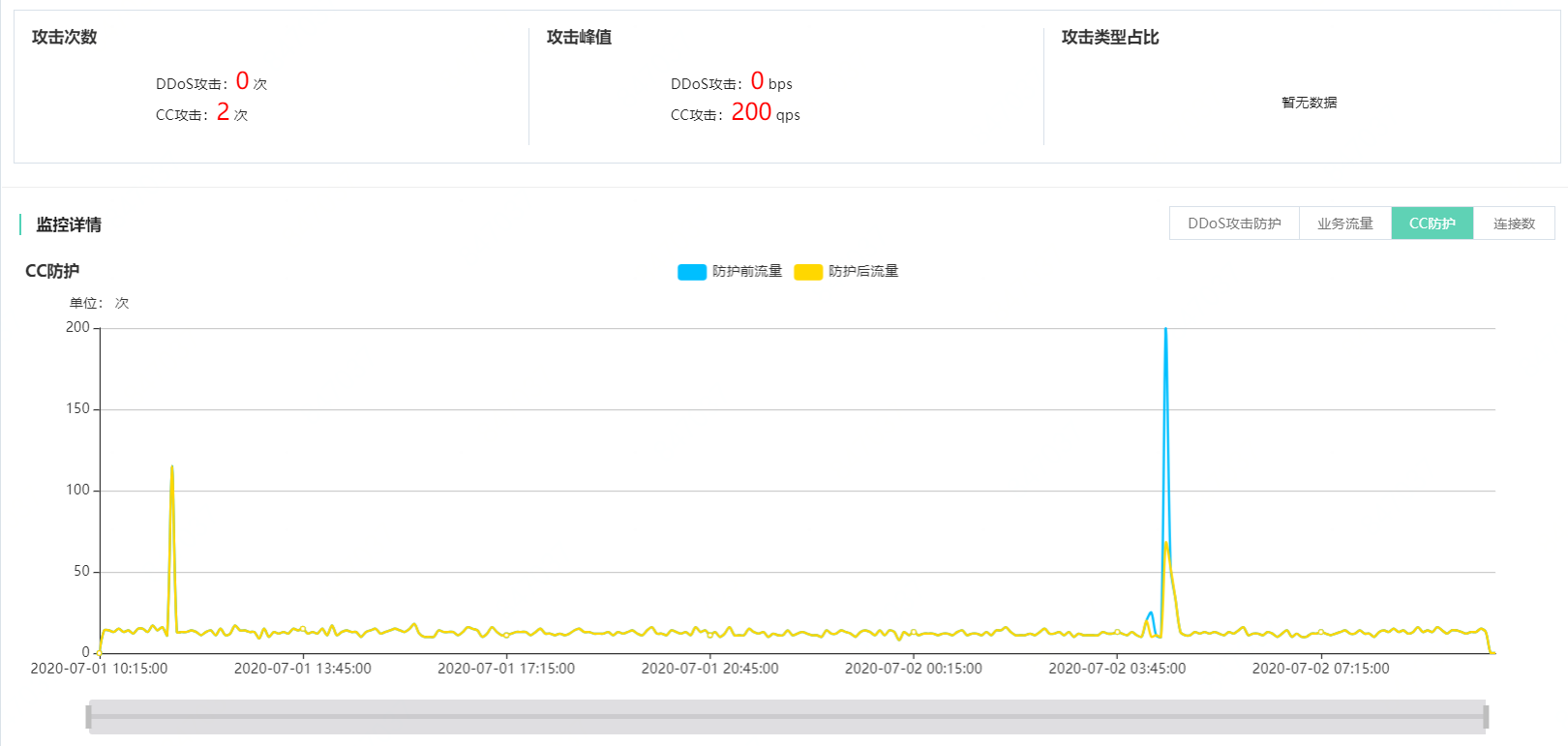

3. CC Protection Report Anti-DDoS Pro provides protection against CC attacks and generates CC protection reports, which support the switching of different domain names. CC Protection is only effective for web services.

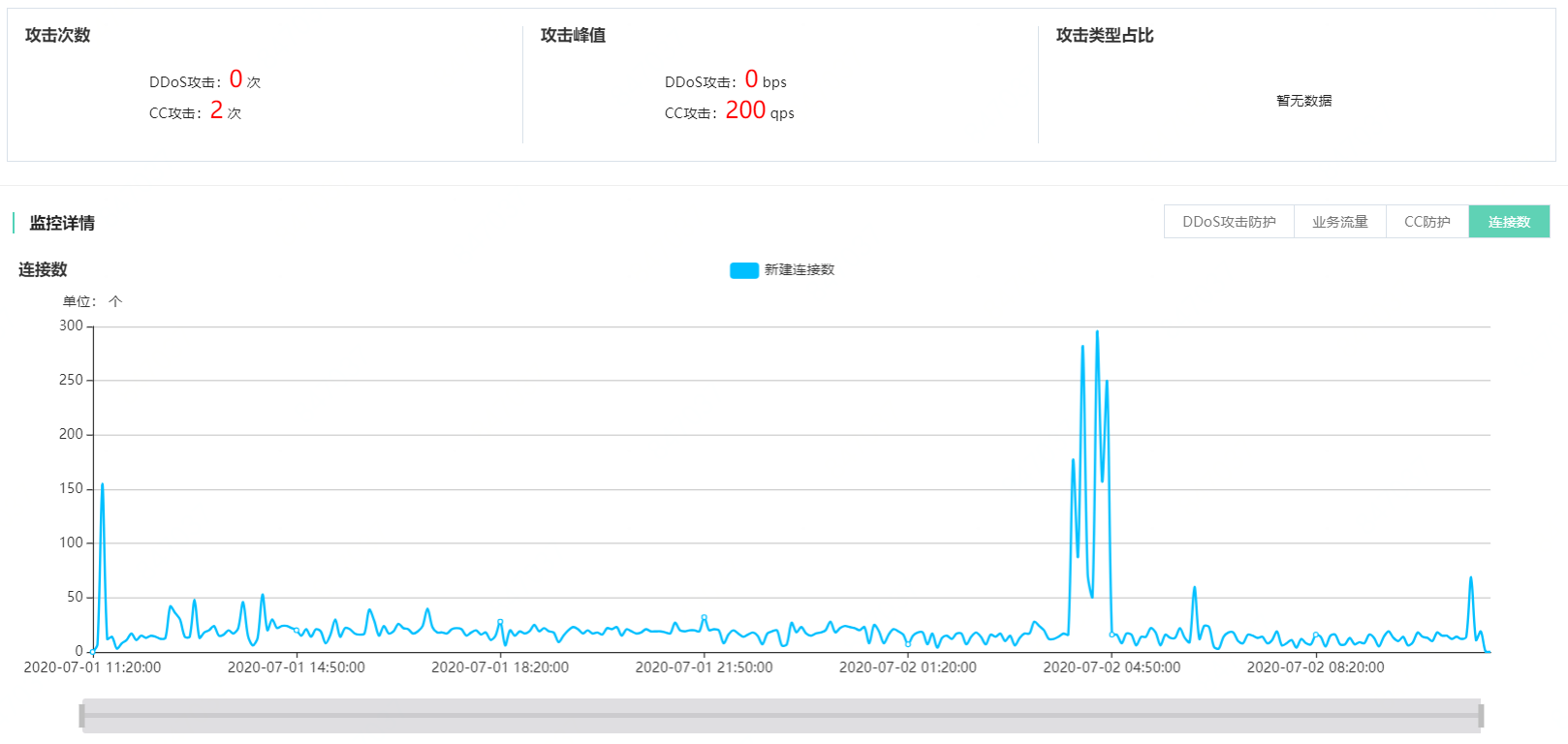

4. Connections Report Number of new connections: The number of connections established by the system in 1 second.
