Direct Connection

2022-02-18 09:06:50

Hosted Connection

hosted connection connects to the public cloud through a physical link direct connection, enabling the customer's JD Cloud Cabinet Service to access VPC resources. It logically represents a physical link.

Action steps

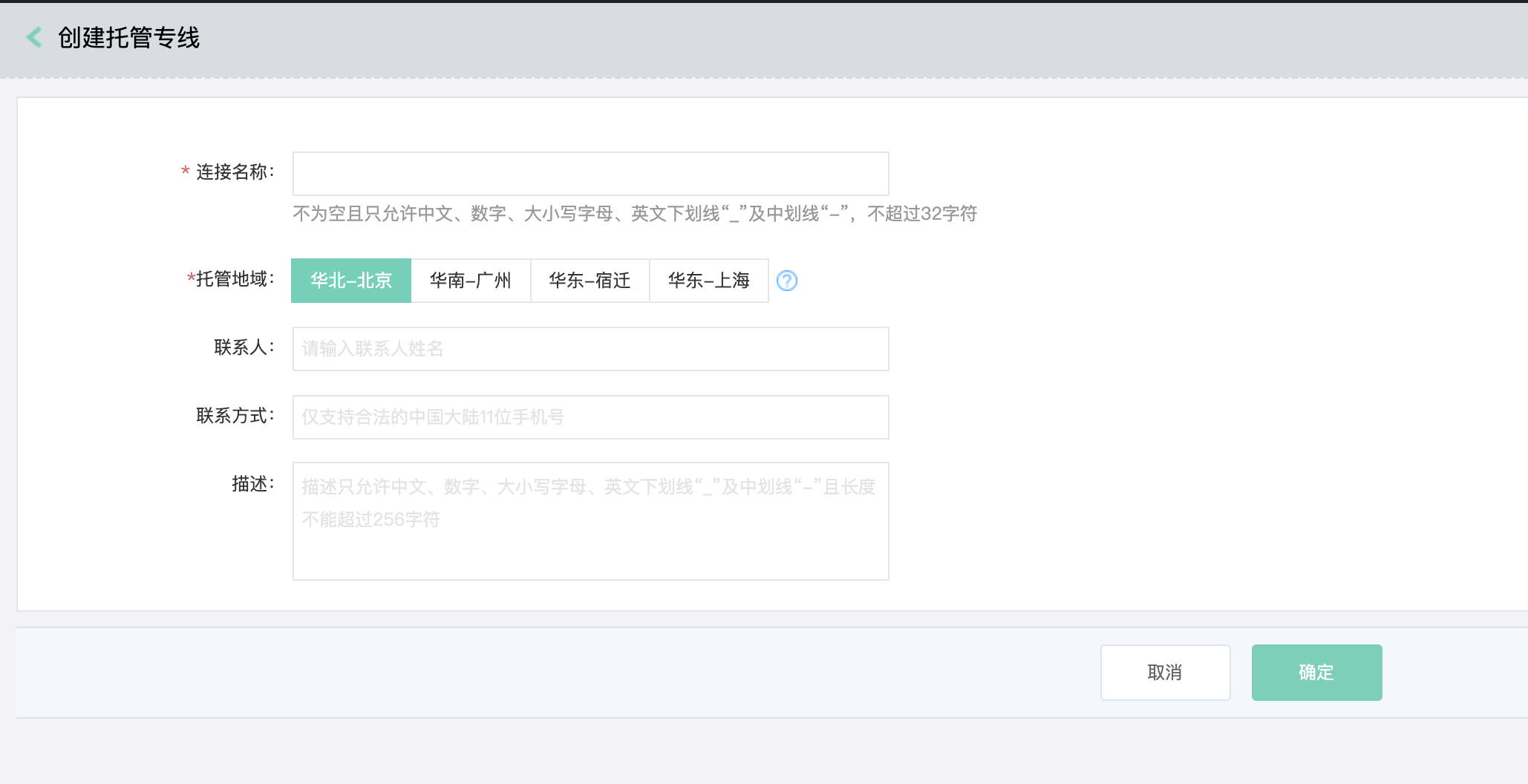

1. Create hosted connection

Customers who have completed enterprise real-name authentication can use the hosted connection.
a) Log in toJD Cloud Hosted Connection Console;
b) Select the region and click "Create";
c) Enter the name, Cabinet Service, contact person, contact information and description of hosted connection to create a hosted connection;
d) the newly created hosted connection enters the To be Audited status, and the review process generally takes 1~2 working days;

  Description of each status of hosted connection:
  To be audited: After the customer applies for hosted connection, the latter enters the "To be Audited" status, and will be reviewed by the backend personnel of JD Cloud. The review items include: Whether the customer has completed the enterprise real-name authentication, etc. If passing the review, the hosted connection will enter the "To be Paid" status, and the corresponding orders will be generated at the same time. If failing to pass the review, the hosted connection will enter the "review failed" status;
  To be paid: In this status, the customer can pay for the corresponding order. After the customer pays for the order, the hosted connection automatically enters the "under construction" status;
  Under Construction: When the physical link is connected to the direct connection device port of JD Cloud and the link layer debugging is successful (the port is UP, and the optical Transceiver is normal), the construction is considered as complete, and the hosted connection enters the "waiting for confirmation" status.
  To be confirmed: When the hosted connection is in the "Waiting for Confirmation" status, the customer can conduct network joint debugging test on the physical link together with JD Cloud. When passing the network joint debugging test, the customer confirms the completion of hosted connection on the JD Cloud console. After confirmation, the hosted connection enters the "available" status;
  Available: It indicates that the hosted connection can be used normally at present. When the physical link cannot be used normally due to some reasons, the hosted connection enters the "unavailable" status;
  Not available: It indicates that the hosted connection cannot be used normally at present. After troubleshooting, the hosted connection enters the "available" status;
  Deleting: The hosted connection can be deleted by the customer when it no longer uses the hosted connection. Since the physical link is required to be removed, the customer is required to apply for disconnection at least one month in advance. When the customer deletes the hosted connection, the hosted connection enters the "Deleting" "status. After the physical link is confirmed to be removed, the JD Cloud backend personnel will confirm the removal of the hosted connection, delete he hosted connection synchronously, and empty the configuration information related to the hosted connection in the physical device of the direct connection.
  Unapproved: The status when the hosted connection audit fails for some reason;

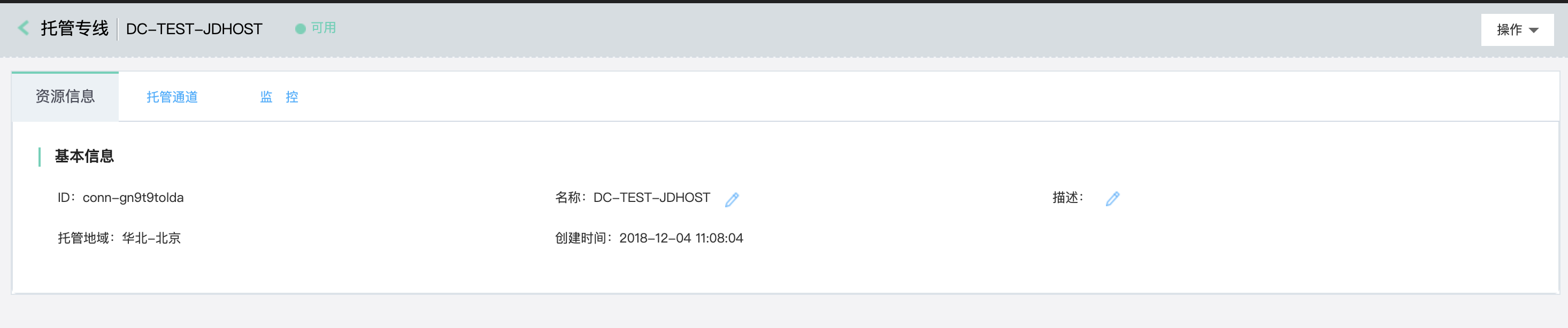

2. Modify the Hosted Connection

You can modify the name and description of the hosted connection.
a) Log in toJD Cloud Hosted Connection Console;
b) Select the corresponding hosted connection and enter the hosted connection details;
c) Support to modify the name and description of the hosted connection, where the restrictions of each configuration item are the same as the creation of the hosted connection;

3. Resize of Hosted Connection

If you need to adjust the physical port specifications due to business changes, please negotiate the specific change time offline with JD Cloud, and prepare the single-mode optical modules required for the new specifications. After the hosted connection is disconnected from traffic, the data center personnel will change the port. After the port change is completed and the traffic is confirmed to be restored (the rate limit of the physical port is still the original specification), please adjust the port configuration in the console to be billed by the new port specification. The rate limit of the port will be automatically adjusted to the new rate after the payment is successful.
a) Log in toJD Cloud Hosted Connection Console;
b) Select the corresponding hosted connection, click "resize" in the operation bar, and perform the configuration upgrade and degrade operations according to your actual needs;

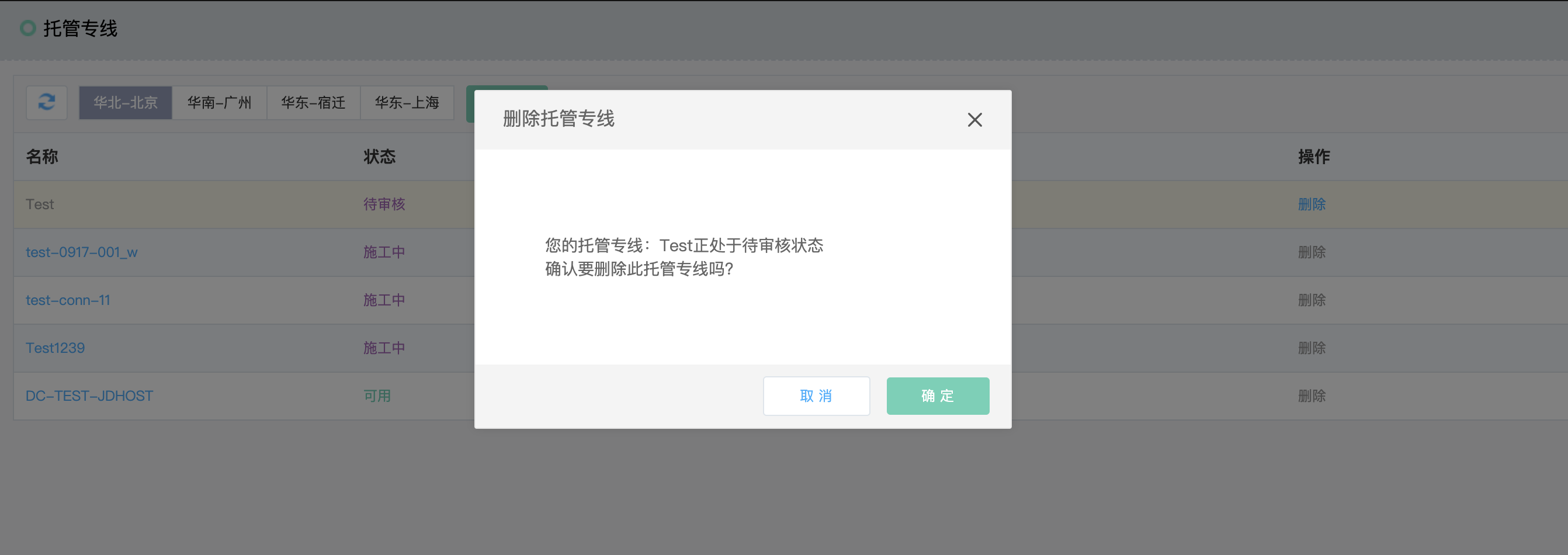

4. Remove the Hosted Connection

If you no longer need the hosted connection, you can delete it.
a) Log in toJD Cloud Hosted Connection Console;
b) Select the corresponding hosted connection, click "Delete" in the operation bar. It can be deleted when the hosted connection does not create a private virtual interface;
